产品展厅>>产品销售>>辰工射孔系列软件>>复合射孔

软件充分考虑了众多复杂因素,通过爆炸与渗流计算,获得井筒p-t曲线及油气井产能,实现曲线、图表、位图等自由组合图形的显示与打印。针对复合射孔在确保井筒安全的前提下,根据油气井产能计算,优化出最经济合理的射孔方案。

该软件主要应用于各大油田的试采公司、井下作业公司、采油厂地质研究所及研究院等单位。

软件针对炸药爆炸及火药爆燃的p-t曲线计算,以此作为基础进行射孔工艺设计;考虑地层中油气等不同流体,进行油气井稳态产能、瞬态产能、井底流压、地面产量的计算;针对不同射孔格式及参数进行射孔优化及敏感分析;依据测井曲线曲线选择合适的射孔段,并绘制在测井曲线上。

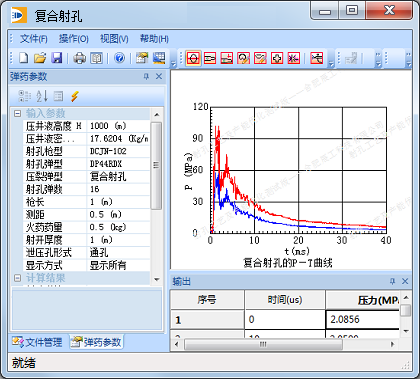

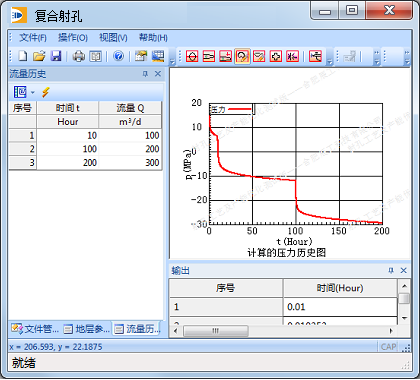

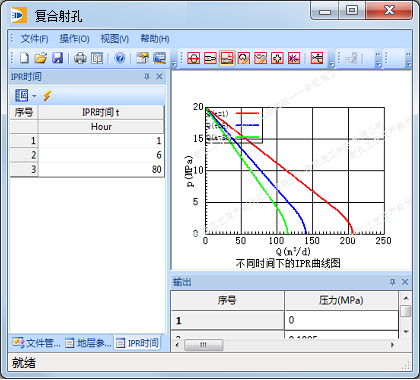

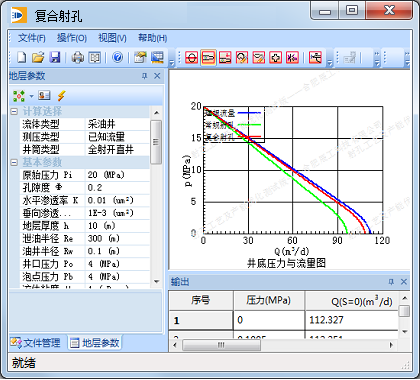

图1 工艺设计界面 图2 稳定产能界面 图3 瞬态产能界面 图4 井底流压界面

Products>>Products on Sale>>Chengong Perforation Software Series>>Composite Perforation

Many complex factors are fully considered in the software. Through explosion and seepage calculation, the wellbore p - t curve and oil and gas well productivity are obtained, and the free combination graphics of curve, chart, bitmap and so on are displayed and printed. On the premise of ensuring the safety of wellbore under composite perforation, the most economical and reasonable perforation scheme is optimized according to the productivity calculation of oil and gas wells.

The software is mainly used in oil field test production companies, downhole operation companies, oil production geological research institutes and other units.

The software aims at the p - t curve calculation of explosive explosion and gunpowder deflagration on the basis of which the perforation process is designed; Considering the different fluids such as oil and gas in the formation, the steady productivity, transient productivity, bottom hole flow pressure and surface production of oil and gas wells are calculated; the perforation optimization and sensitivity analysis are carried out according to different perforation formats and parameters; and the appropriate perforation section is selected according to the logging curve and drawn on the logging curve.

Figure1: Process design interface Figure2: Stable productivity interface Figure3: Transient productivity interface Figure4: Bottom hole flowing pressure interface
