产品展厅>>产品销售>>辰工录井系列软件>>石油勘探绘图平台

石油勘探绘图平台是一个通用性的石油勘探图件绘制工具,软件通过对各种数据库的数据读入,实现各种曲线、文本、岩性、T2能谱图及岩样色谱图等自由组合的显示与打印。

可与各种不同类型的数据连接。

方便实用的岩性代码生成器。

可以与油气层的解释评价有机地结合。

通过数学手段实现复杂的矢量图绘制及图形图像处理,并实现各种快速排序。

可存成Word、Excel、位图、JPG等七种格式的图片,便于网上浏览图片和生成汇报材料。

万能的单位制换算功能。

可随意对标题及图例进行编辑。

对文本及曲线提供统计功能。

提供多个接口,进入多个子软件。

实现灵活的图形及图像操作功能。

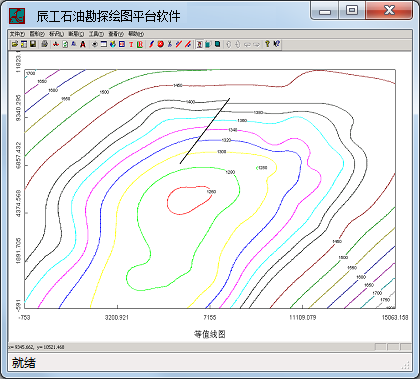

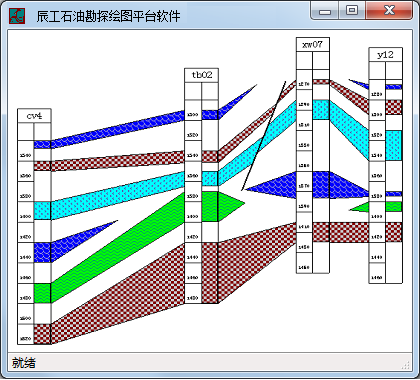

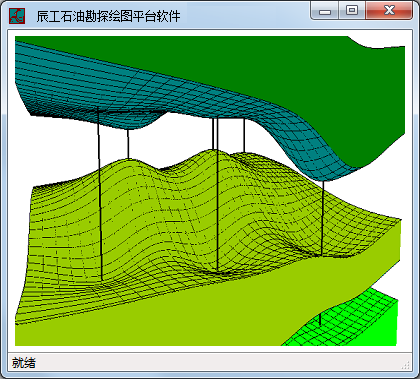

图1 综合绘图软件 图2 多井连通对比软件 图3 多井多层三维地层软件  图4 地层构造等值线软件

Products>>Products on Sale>>Chengong Logging Series Software>>Chengong Petroleum Exploration Drawing Platform

Petroleum exploration drawing platform is a universal tool for drawing petroleum exploration maps. The software realizes the display and printing of all kinds of curves, text, lithology, T2 energy spectrum, rock sample chromatogram and so on free combinations by reading the data of various databases.

Can be connected to a variety of different types of data.

Multifunctional unit system conversion function.

Convenient and practical lithology code generator.

You can edit the title and legend.

Realize flexible graphics and images operation function.

Provides statistical function for text and curve.

The complex vector drawing and graphics and image processing are realized by mathematical means, and all kinds of fast sorting are realized.

Provide multiple interfaces to enter multiple sub software.

Can be saved into Word, Excel, Bitmap, JPG and other seven formats of pictures, easy to browse and generate reporting materials.

It can be organically combined with the interpretation and evaluation of oil and gas reservoirs.

Figure1: Integrated drawing software Figure2: Multi-well connected comparison software Figure3: Multi-well and multi-layer 3D formation software Figure4: Formation structure contour line software
